Model:W-4022

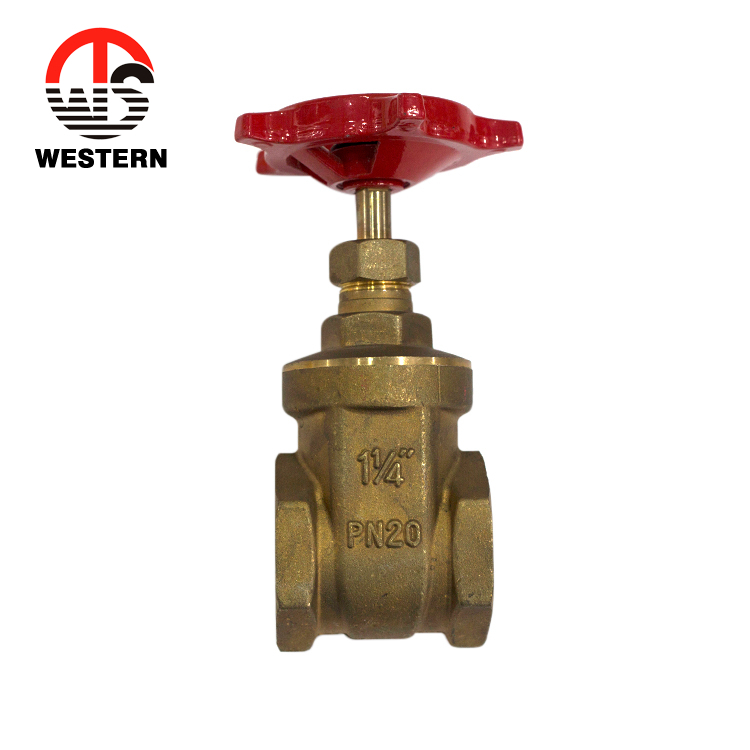

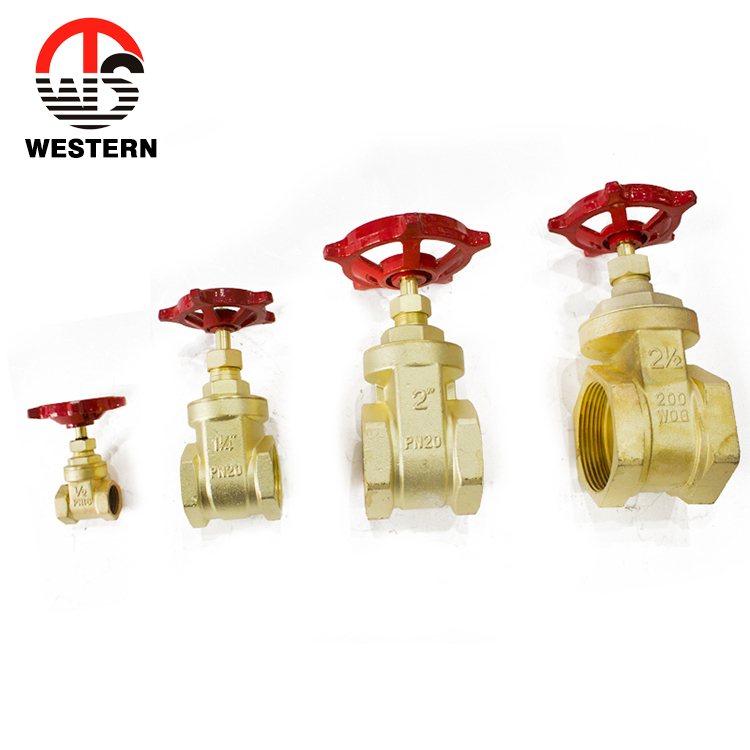

BRASS GATE VALVE,SAND BLASTED SURFACE,

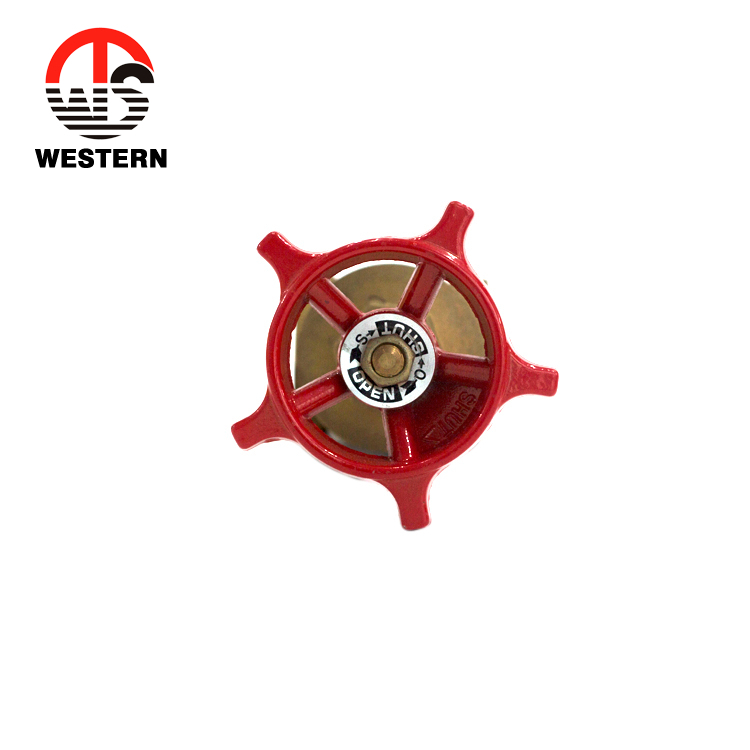

DRAWN FLAT IRON HANDWHEEL, ISO228/1 FXF
THREAD 200WOG
Size: 1/2"-2"
Availability:
Model:W-4022
Model:W-4022
Model:W-4022
Model:W-4022
Model:W-4022
Model:W-4022

Description

BRASS GATE VALVE

Material

Brass Body, Brass Flash board, Steel HandWheel, PTFE filler

Brass can be CuZnPb3,CZ121,C37710,CW614N,CW617,DZR etc

Surface

Natural Brass

Size

1/2”-2

Testing Pressure

100% tested with 0.6MPa – 0.8Mpa by air

Thread

BSP & NPT for selecting

Sample Time

1) 5 days-For our existing  samples for reference

2) 15 days-If new size OR need make the new mould

OEM Acceptable

Yes

Production Capacity

100000 pcs each month

Packing Details

Standard export packing or as customers requirements.

Inner box, outer carton and pallet

Payment Term

T/T,L/C, D/P,D/A,PAYPAL,WESTERN UNION

Delivery Time

25 days to 45 days after confirming the order

Minimum Order QTY

300 – 5000pcs

Inspection

Each cargo will be inspected before shipping. The third-party inspection company is acceptable, like SGS,  ASIA inspection etc.


Parameters

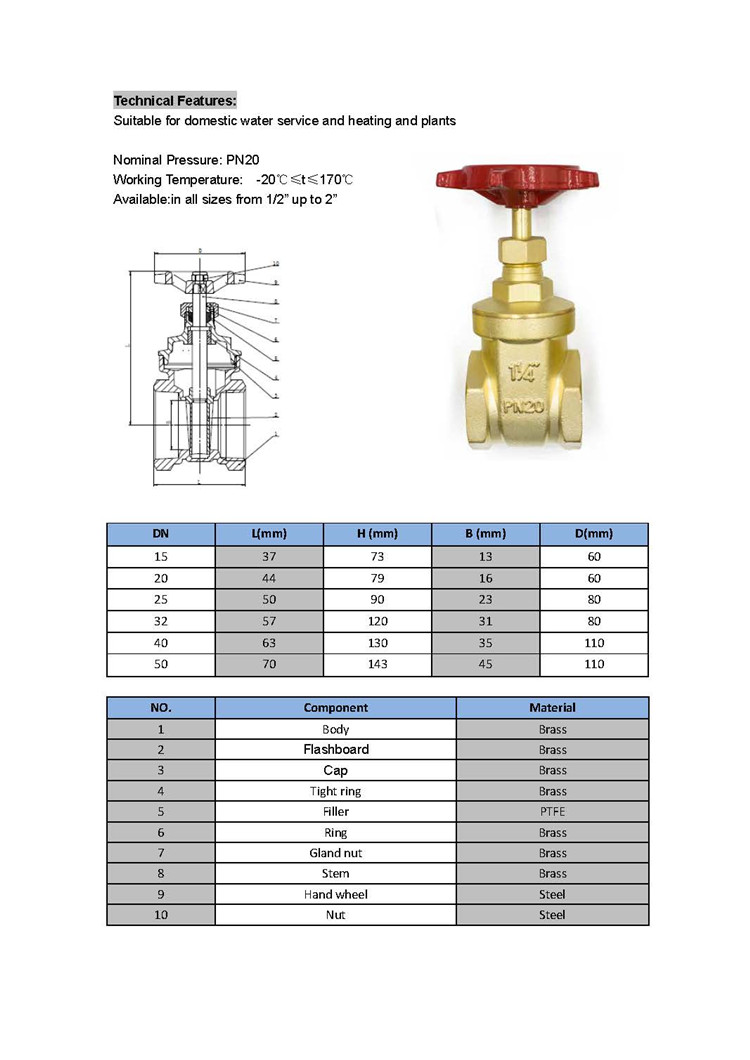

W-4022 B10 五角手轮闸阀
