Model:W-4001

BRASS GATE VALVE F/F
MECHANICAL POLISHING SURFACE,
WITH RED-PAINTED FOUNDRY
IRON HANDWHEEL,BRASS FORGED
BODY 200WOG /PN16
Size: 1/2"-4"
Availability:
Model:W-4001
Model:W-4001
Model:W-4001
Model:W-4001

Description

BRASS/BRONZE GATE VALVE

Material

Brass Body, Brass Flash board, Steel Hand Wheel, PTFE filler

Brass can be CuZnPb3,CZ121,C37710,CW614N,CW617,DZR etc or Bronze

Surface

Natural Brass or Nickel Plated

Size

1/2”-4

Testing Pressure

100% tested with 0.6MPa – 0.8Mpa by air

Thread

BSP & NPT for selecting

Sample Time

1) 5 days-For our existing  samples for reference

2) 15 days-If new size OR need make the new mould

OEM Acceptable

Yes

Production Capacity

100000 pcs each month

Packing Details

Standard export packing or as customers requirements.

Inner box, outer carton and pallet

Payment Term

T/T,L/C, D/P,D/A,PAYPAL,WESTERN UNION

Delivery Time

25 days to 45 days after confirming the order

Minimum Order QTY

300 – 5000pcs

Inspection

Each cargo will be inspected before shipping. The third-party inspection company is acceptable, like SGS,  ASIA inspection etc.

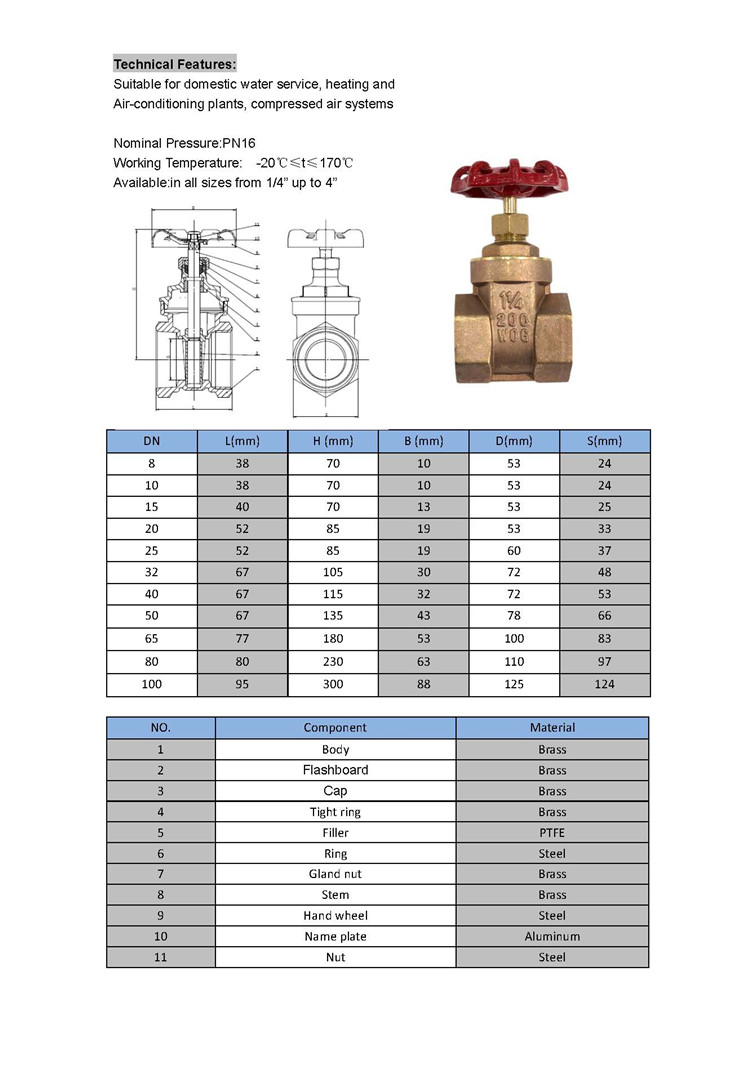

Parameters

W-4001闸阀_副本
