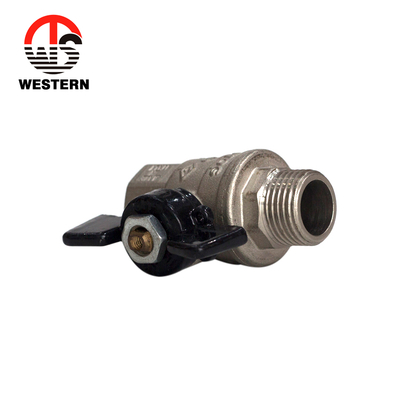

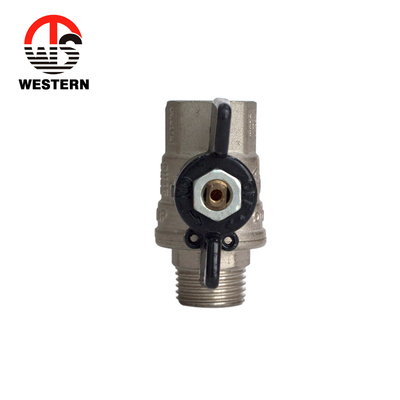

Model:W-1164

BRASS WATER BALL VALVE ,
MS58 MATERIAL,BRASS FORGED VALVE
BODY NICKEL PLATED,ALUMINIUM BUTTERFLY
HANDLES COLOR PAINTED,
PN20,SUIT FOR WATER GAS,
Size: 1/2"-1"
Availability:
Model:W-1164
Model:W-1164
Model:W-1164
Model:W-1164

Description

BRASS BALL VALVE

Material

Brass Body, Brass Bonnet, Brass   ball, Aluminium Handle, PTFE ball Seat, NBR O-Ring

Brass can be   CuZnPb3,CZ121,C37710,CW614N,CW617,DZR etc

Surface

Nickel Plated

Size

1/2”-1”

Testing Pressure

100% tested with 0.6MPa – 0.8Mpa   by air

Thread

BSP & NPT for selecting

Sample Time

1) 5 days-For our existing   samples for reference

2) 15 days-If new size OR   need make the new mould

OEM Acceptable

Yes

Production Capacity

100000 pcs each month

Packing Details

Standard export packing or as   customers requirements.

Inner box, outer carton and   pallet

Payment Term

T/T,L/C, WESTERN NION

Delivery Time

25 days to 45 days after   confirming the order

Minimum Order QTY

300 – 5000pcs

Inspection

Each cargo will be inspected   before shipping. The third-party inspection company is acceptable, like SGS,   ASIA inspection etc.
