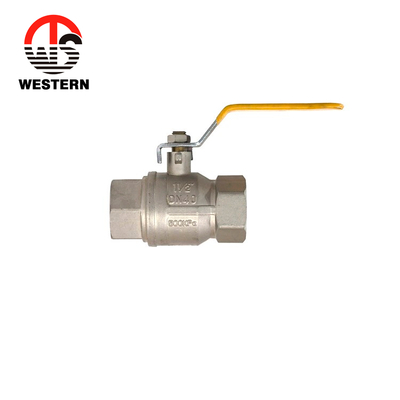

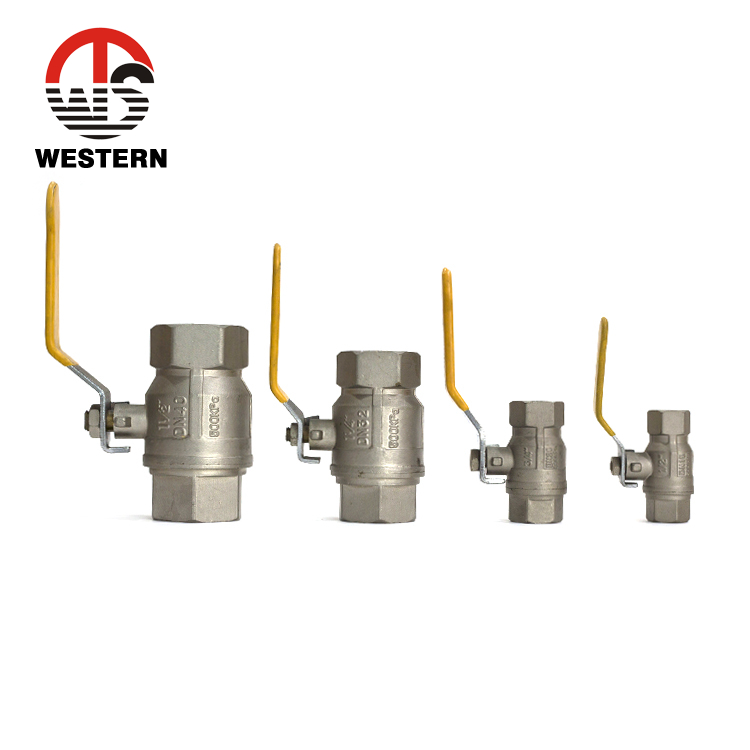

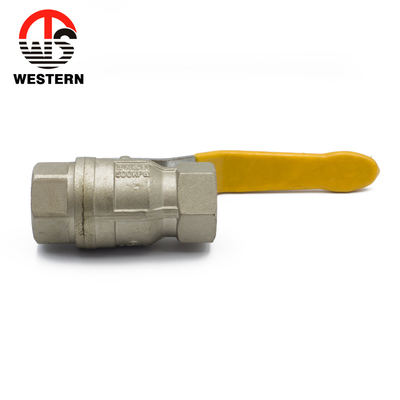

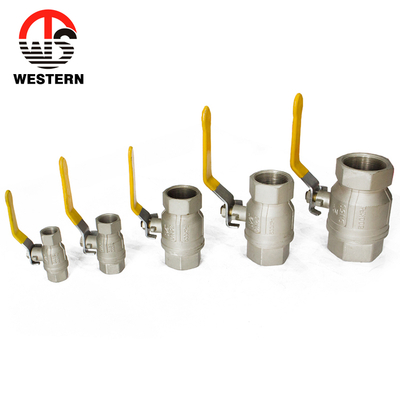

Model:W-1066

​BRASS BALL VALVE STANDARD BORE,

CW614/OT59 MATERIAL,FORGED BODY

NICKEL PLATED.FLAT STEEL HANDLE PVC

COATED,FXF THREAD ISO228/1,PN40

500KPA,SUIT FOR GAS

Size: 1/4"-4"
Availability:
Model:W-1066
Model:W-1066
Model:W-1066
Model:W-1066
Model:W-1066

Description

BRASS BALL VALVE

Material

Brass Body, Brass Bonnet, Brass  ball, Steel Handle, PTFE ball Seat, NBR O-Ring

Brass can be CuZnPb3,CZ121,C37710,CW614N,CW617,DZR etc

Surface

Nickel Plated

Size

1/4”-4”

Testing Pressure

100% tested with 0.6MPa – 0.8Mpa by air

Thread

BSP & NPT for selecting

Sample Time

1) 5 days-For our existing samples for reference

2) 15 days-If new size OR need make the new mould

OEM Acceptable

Yes

Production Capacity

100000 pcs each month

Packing Details

Standard export packing or as customers requirements.

Inner box, outer carton and pallet

Payment Term

T/T,L/C, D/P,D/A,PAYPAL,WESTERN UNION

Delivery Time

25 days to 45 days after confirming the order

Minimum Order QTY

300 – 5000pcs

Inspection

Each cargo will be inspected before shipping. The third-party inspection company is acceptable, like SGS,  ASIA inspection etc.






Parameters

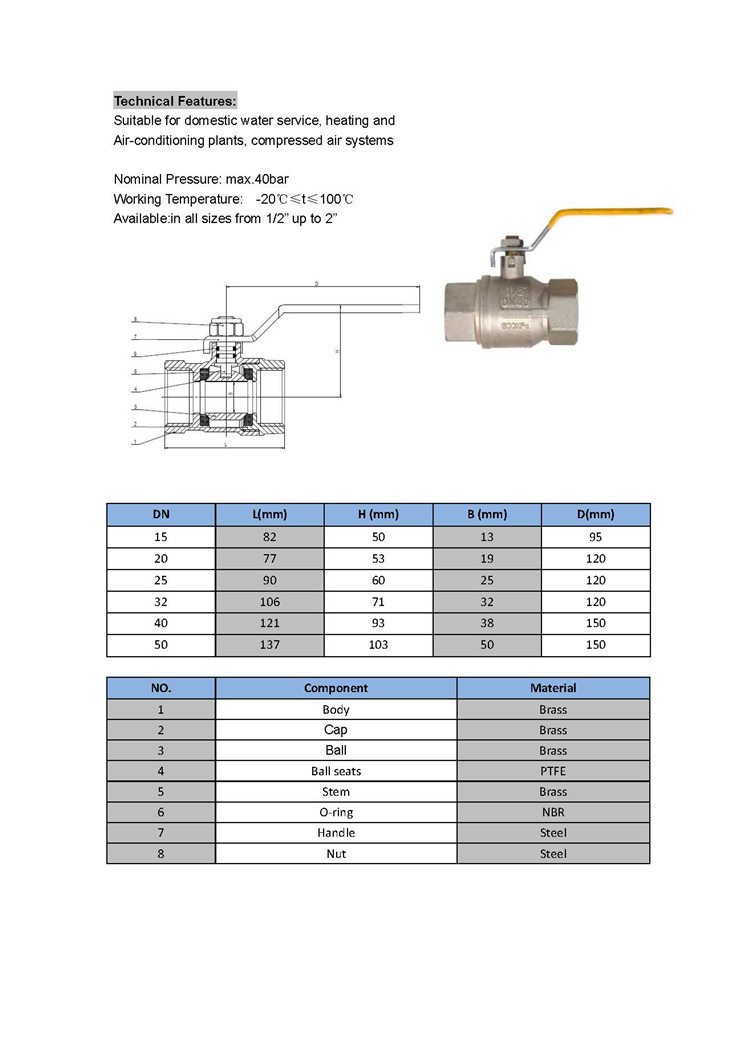

W-1066 黄手柄球阀_副本
